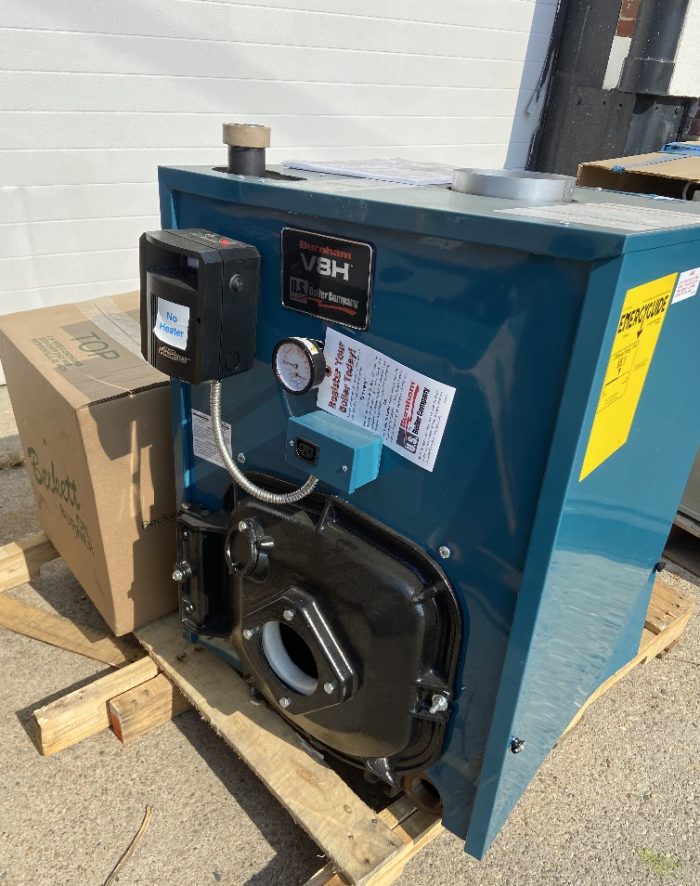

BURNHAM BOILER PV8H4WEC 129,000 BTU Output V8H Water Boiler w/o Tankless Coil w/ Beckett Burner (Oil)



SKU: .84118-PRO Categories: , ,


Without Tankless Coil

The V8H oil-fired boiler is designed for quiet operation while providing years of reliable and efficient service. As always, the jacket design and burner enclosure give the V8 a modern, finished appearance, and it is available in multiple heating capacities that can be configured for water or steam – with or without a tankless hot water heating coil. As one of the most versatile boilers available, the V8 is intended for installation in a wide variety of home styles and sizes. Beginning October 1, 2020, 03 through 07 section V8H water boilers will be upgraded to the DOE-2021 efficiency requirement of 86% AFUE.

86% AFUE ENERGY STAR®-certified 87% AFUE available with upgrade kit
Cast iron sectional design
Seven sizes available, 1.00-2.60 GPH
Optional tankless water heater
Multiple oil burner options for water boilers (Beckett, Carlin), includes burner cover for quiet operation
Durable push-nipple connections between boiler sections – will not deteriorate when exposed to petroleum-based antifreeze
Easy to clean and service – side and top cleanouts provide complete access to flueways
Full swing-away burner door
Lifetime limited warranty
Intelligent Oil Boiler Control
Standard on V8H water boilers
Combines aquastat and relay functions into a single module
Two customizable integrated switching relays for easy addition of additional heating zone or indirect water heater
Energy saving “thermal purge”, which works by circulating residual warm water (140° or above) in the heating system before firing the boiler
LED display for boiler status and trouble codes
Extensively tested and proven in thousands of existing installations
Standard Equipment
Cast iron section assembly: Wet base construction, quick release top outlet canopy, removable right side flue plates
Intelligent Oil Boiler Control System (water only)
Cast iron swing door
Flange mounted retention oil burner
Insulated deluxe jacket with lift-off side panel
Boiler drain valve
Safety relief valve
Pressure temperature gauge
High limit & relay
Draft regulator
Gauge glass set (steam only)
Steam gauge (steam only)
Probe-type LWCO (steam only)
8 and 9 section models always shipped as individually crated knock-downs
