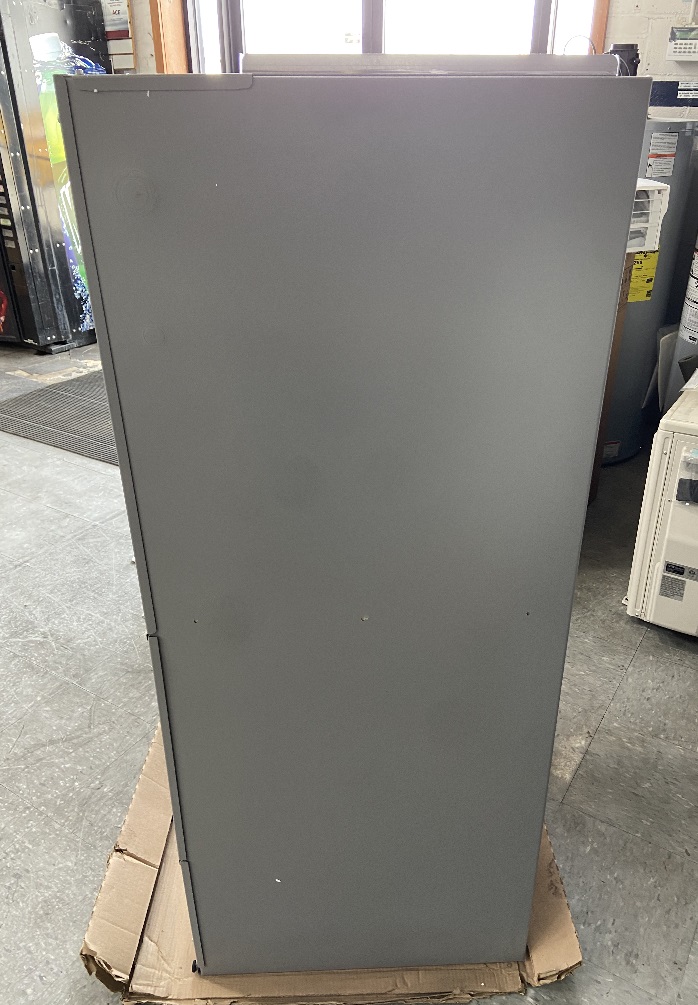

CONCORD BCE5E42MA4X 3.5 Ton Compact Multi-Position Constant Torque Omniguard Air Handler W/ TXV 208/230v



SKU: .519949-PRO Categories: ,


Filter Size 18″ x 20″ x 1″
Height 59-3/4″
Length 22″
Liquid Line Size 3/8″
Material Galvanized Steel
Motor Type Constant Torque
Nominal Capacity 3.5 Ton Cooling
Power Source 208/230v 1-Phase 60Hz
Refrigerant Type R-410A TXV
Return Air Opening 19-1/4″ W x 20-3/8″ D
Series BCE5E
Suction Line Size 7/8″
Supply Air Opening 19-1/2″ W x 14-1/2″ D
Width 21-1/2″

Constant torque motor – Like a variable speed air handlers, constant torque air handlers provide lower operating costs and increase overall system efficiency and compared to standard PSC motors, constant torque delivers more consistent airflow and quieter operation
Highly consistent performance – Compared to single-speed motors, the constant-torque motor of the BCE3E unit delivers more consistent airflow and quieter operation, delivering daily energy savings, the BCE3E may qualify you for energy incentives
Anti-microbial protection – Drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
Blower coil
5 series (1-piece platform OmniGuard™)
Designed to help provide energy savings and increase efficiency, the BCE5E’s constant torque motor provides a steady flow of air, maintaining a more consistent airflow than a single-speed PSC motor. The unit works most effectively when paired with a matched Armstrong Air® heat pump or air conditioner, saving you money every month, and it may qualify for local utility rebates.

Armstrong Air® Air Handler, Multi-Position, Series: 5 Series, 3.5 ton Nominal, 49100 Btu/hr Heating, 1750 cfm Flow Rate, 208/230 VAC, 1 ph, 60 Hz Power Source, 3/8 in Liquid Line, 7/8 in Suction Line, 90 A Fuse, 19-1/2 in W x 14-1/2 in H Supply Air Opening, 19-1/4 in W x 20-3/8 in D Return Air Opening, 18 x 20 in Filter, Constant Torque Control, R-410A Refrigerant, Constant Torque Motor, Galvanized Steel, 21-1/2 in W x 22 in D x 53.63 in H Dimensions
