From their tough construction to their consistent efficiency in even the coldest weather, Armstrong Air® variable-speed oil furnaces are built using over 80 years of expertise. That’s why they continue to be the brand of choice for industry professionals across the country.

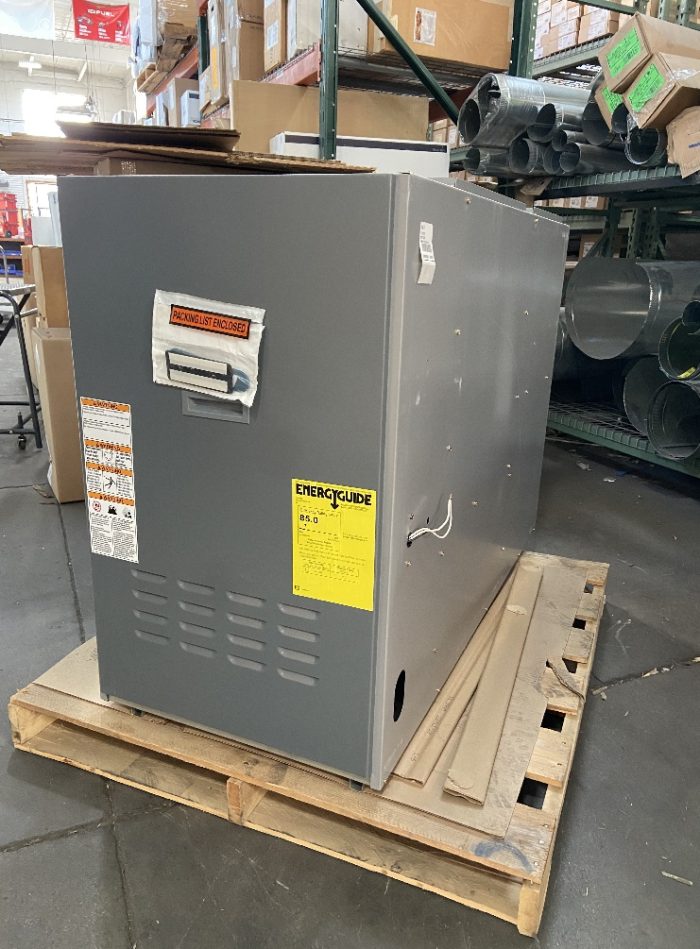

Armstrong Air® Oil Fired Furnace, 1-Stage Basement/Front Flue, Series: L85V, 141000 Btu/hr Input, 251000 Btu/hr Output, 120 V, 85 % AFUE, 2000 cfm, 6 in Dia Flue, Variable Speed Blower Motor, 1 hp Motor, 15 A Fuse, Steel, 22-1/2 in W x 52 in D x 37 in H
Features
85% AFUE efficiency rating – Compared to an older furnace, this can potentially save you hundreds of dollars per year in energy costs
Insulated cabinet – Prevents loss of warm air while reducing noise from the motor
Variable speed blower motor – This motor gradually ramps up and down significantly reducing the sound of air moving through ductwork
Beckett burners – Features like solid-state ignition, PSC burner motor and clean-cut pump make these burners the most popular in the industry
Basement front flue configuration
Specs
AFUE Rating85%
Dimensions22-1/2 in W x 52 in D x 37 in H
Flow Rate2000 cfm
Flue Size6 in Dia
Fuse Size15 A
Input Capacity141,000 BTU/hr
ManufacturerAllied Air Enterprises
Manufacturer #L85BF1V104/118F20
MaterialSteel
Motor HP1 HP
Motor TypeVariable Speed Blower
Output Capacity251,000 BTU/hr
SeriesL85V
Type1-Stage Basement/Front Flue
Voltage Rating120 V
