Description

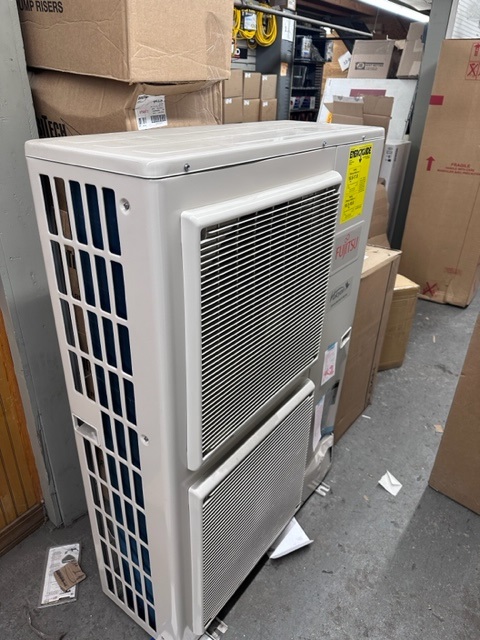

THIS IS FOR THE CONDENSER (OUTDOOR UNIT) ONLY, WILL NEED COMPATIBLE INDOOR UNIT.

Ductless Mini Split 16.6 SEER, Single-Zone Heat Pump, R410A
SEER: 16.6; SEER Non-Ducted: 17.8; SEER Ducted: 16.6; EER Non-Ducted: 10.1; EER Ducted: 10.1; HSPF Non-Ducted: 10.6; HSPF Ducted: 10.3; BtuH Cooling: 48,000; Min. Cooling Capacity BtuH: 17,100; Max. Cooling Capacity BtuH: 50,000; BtuH Heating: 53,000; Min. Heating Capacity BtuH: 18,000; Max. Heating Capacity BtuH: 55,000; CFM High: 4,061; Volts: 208/230; Amps Cooling: 20.9; Max. Fuse Size: 30; Cooling Temperature Range Deg.F: -5-115; Heating Temperature Range Deg.F: -5-75; Sound Pressure Cooling dBA: 57; Sound Pressure Heating dBA: 59; Liquid Conn.: 3/8″; Suction Fitting: 5/8″; Min. Total Pipe Length: 16; Max. Total Pipe Length: 246; Min. Each Pipe Length: 16; Max. Each Pipe Length: 246; Width: 35-7/16″; Height: 50-13/16″; Depth: 13″; Wt. Lbs.: 209; Min. # of Connectable Indoor Units: 1; Max. # of Connectable Indoor Units: 1; Min. Connectable Capacity: 48,000; Max. Connectable Capacity: 48,000; Nom. Capacity: 48,000;
