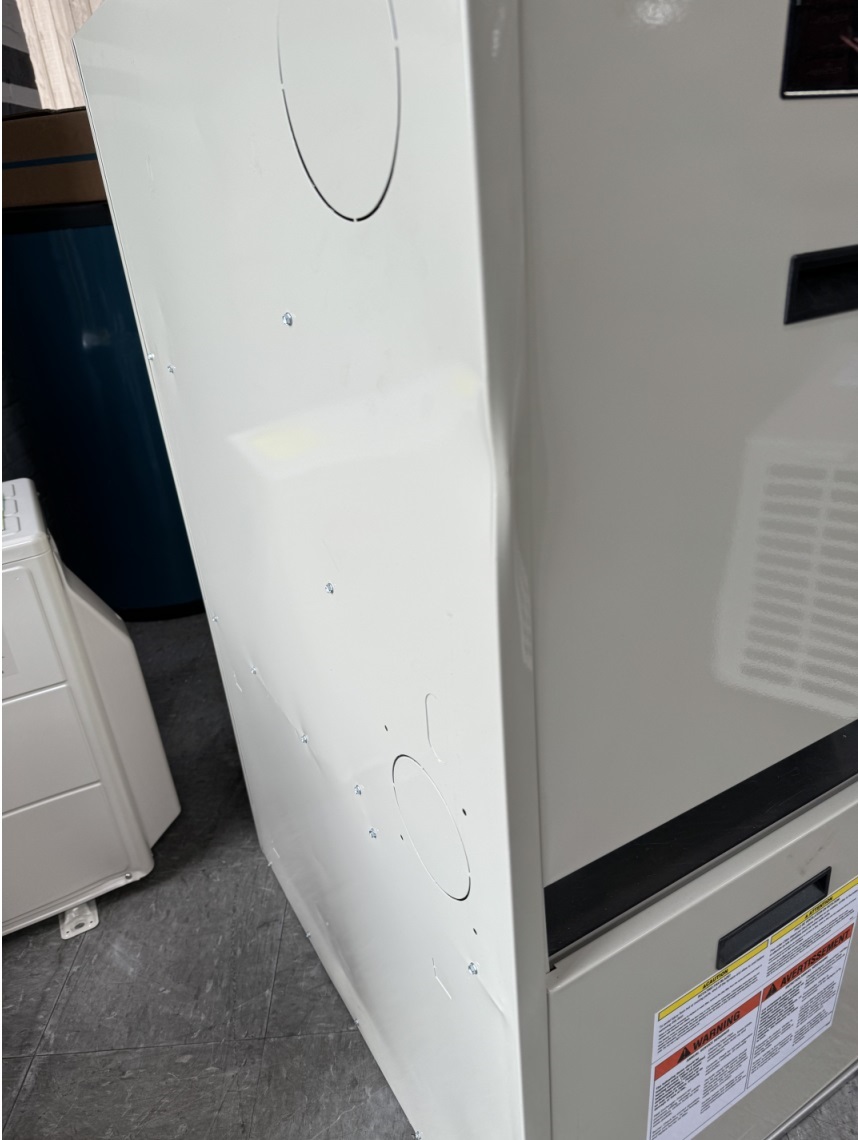

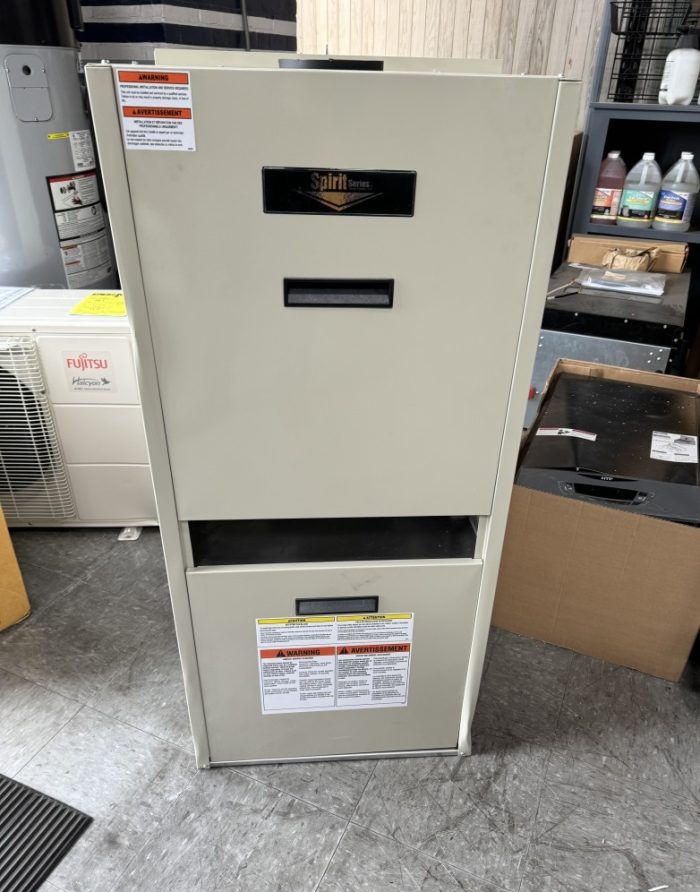

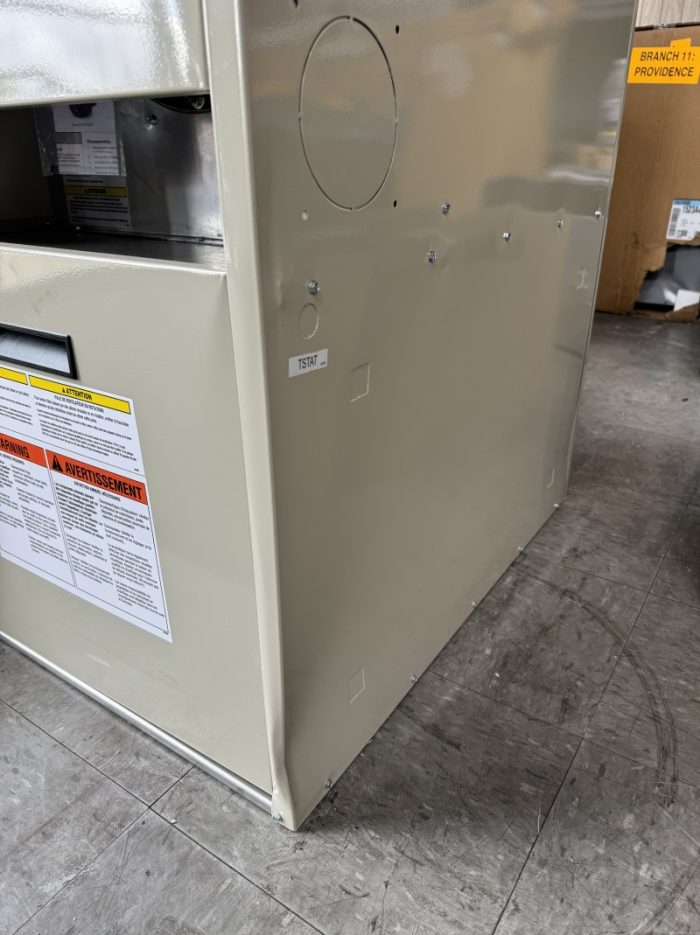

THERMOPRIDE SPIRIT OIL FIRED UPFLOW FURNACE VHF-ABP

Description

Thermo Pride VHF-ABP Powder Coated Highboy Oil Furnace, 85% AFUE, 120 volt, 106250/85000/70000 BTU Input, 90000/72000/60000 BTU Output
With Beckett AFG burner
Front flue
Low profile
Spirit furnaces are equipped with a multi speed direct drive blowing motor
4 Ton cooling capacity
Entire blower assembly can be removed for cleaning
Fully insulated cabinet to reduce energy loss
19″ width x 19″ depth supply air outlet
24″ height x 14-1/4″ depth return air outlet
7″ flue diameter
Preformed refractory chamber of ceramic fiber heats up quickly, re-radiates heat back into the fire providing more complete combustion, and cools down quickly after the burner stops
Heavier metal and hand welded wrap around design provides smoother airflow for even heat, quieter operation, and 70 deg F nominal temperature rise for comfort
,
